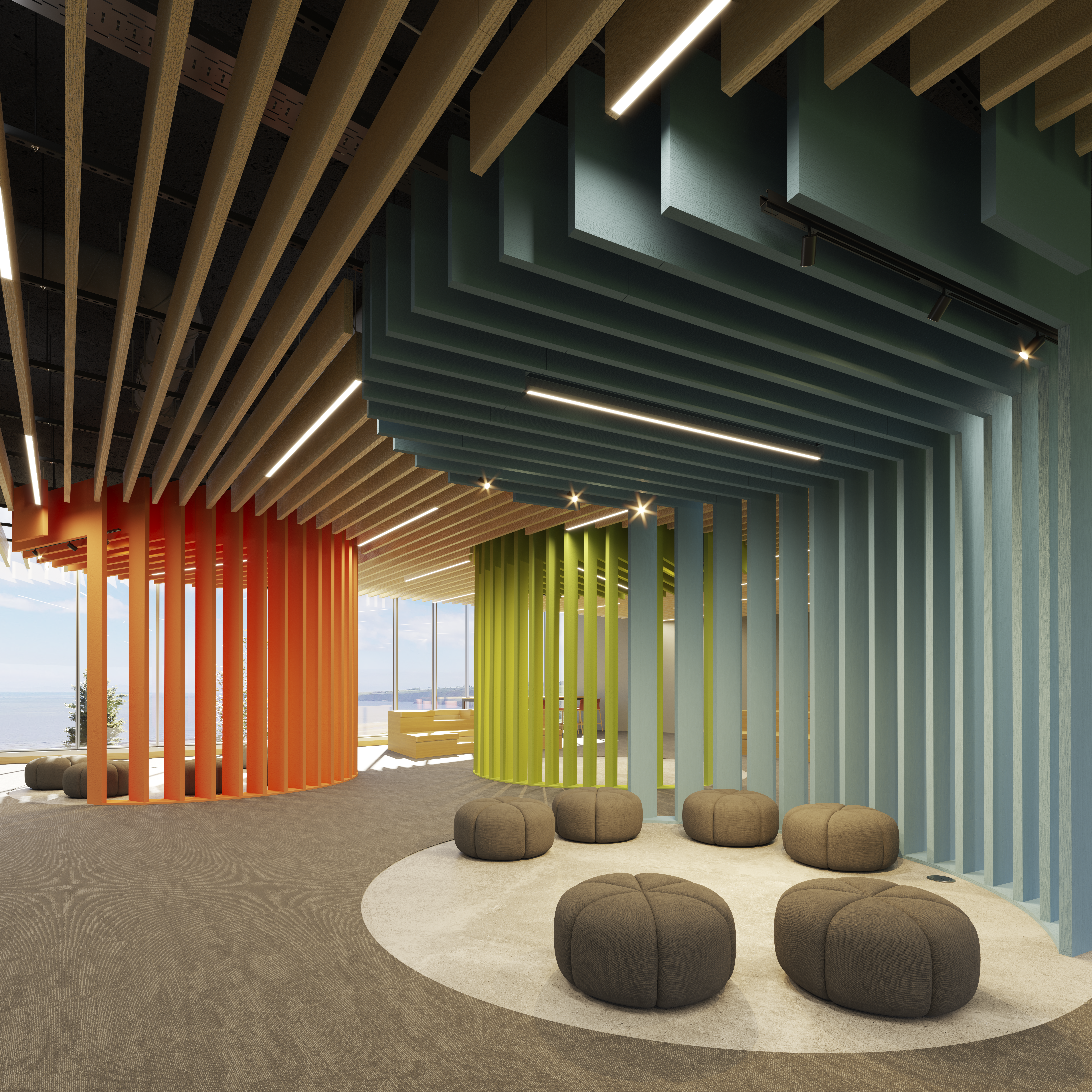

Lit Baffle
Luminaire
Discover Rensa Lit Baffles -- the world's only real wood, acoustic luminaires. A versatile, modern profile, the Rensa Lit Baffles integrates exceptional lighting and top-performing sound absorption into one attractive solution. Designed to complement SoundPly Acoustic Baffles, Planks and Panels for a total room solution with matching real wood finishes.
Integrates with
Leverage design flexibility across ceilings and walls with continuous runs and custom patterns.
Visit soundply.com for more acoustic product informationHighest Quality LightingMicroPerfectionCustom Real WoodLightweight Acoustic CoreHardware for every installation
Documents
Files
Can't find a file or document that you are looking for? Contact us.
Specifications
Acoustics
- RF Core: 0.90 NRC
- LR Core: 0.80 NRC
- Test Standard: ASTM C423, F6 Direct Mount
Material
- Core: RF fiberglass or LR mineral wool
- Recycled Content (RF): 30% Post-consumer
- Recycled Content (LR): 21% Pre-consumer
- Surface: Thermally fused layers of fiberglass reinforced polymer and/or MDF
Finish
- Wood: Real wood veneer, species as selected
- Painted: MDF finish, color as selected
Optics
- Direct: Diffuse
- Indirect: Batwing
- CRI: 90
Electrical
- Voltage: (120/277V) Universal, 1% Dimming, 0-10V
Luminaire
- Reflectors: Fabricated of 22 Ga. steel
- Finish: Matte White powder coat
- Lens: Extruded acrylic 0.05 in. thick, frosted finish
- Max Length: Up to 10' continuous
Mounting
- Type: Pendant, suspended by aircraft cable
Fire Rating
- Classification: Class A, ASTM E84
Environmental
- Ambient Temp: Up to 25°C
- Humidity: 25%-55% relative humidity
- Location: Dry locations only
LEED
- MR: Recycled Content
- MR: Material Ingredients
- EA: Optimized Energy Performance
- EQ: Enhanced Acoustical Performance
- EQ: Interior Lighting
- EQ: Daylight
- EQ: Low Emitting Materials (RF core)
Warranty
- Housing: 1-Year
- Luminaire: 5-Year
UL Listing
- Standard: Luminaires, UL1598
Fixture Options
Surface Treatment
- SoundPly (Micro-perforated)
- AeroPly (Not perforated)
Acoustic Core
- RF Series (0.90 NRC)
- LR Series (0.80 NRC)
Thickness
- 2"
Height
- 5.75"
- 7.75"
- 11.75"
- 23.75"
- Custom (6"-24")
Length
- 48"
- 72"
- 96"
- 120"
Lighting Options
Direct Light Engine (LM/FT)
- NONE
- 300
- 400
- 500
- 650
- 800
Indirect Light Engine (LM/FT)
- NONE
- 375
- 500
- 625
- 800
- 950
Direct Light Optics
- Regress Lens (Standard)
Indirect Light Optics
- Batwing (Standard)
Color Temperature
- 3000K (80 and 90 CRI)
- 3500K (80 and 90 CRI)
- 4000K (80 CRI only)
Circuiting
- Single Circuit
- Double Circuit
Cord Type
- Standard
- Plug
Cord Length
- 24"
- 48"
- 96"
Sizing
Actual sizing shown, though dimensions may be referenced to as nominal heights.
